Advanced Centrifugal Separation
Cyclone System
Engineered to remove sand, grit, and fines from downhole pump assemblies, improving efficiency, reducing wear, and extending equipment life.

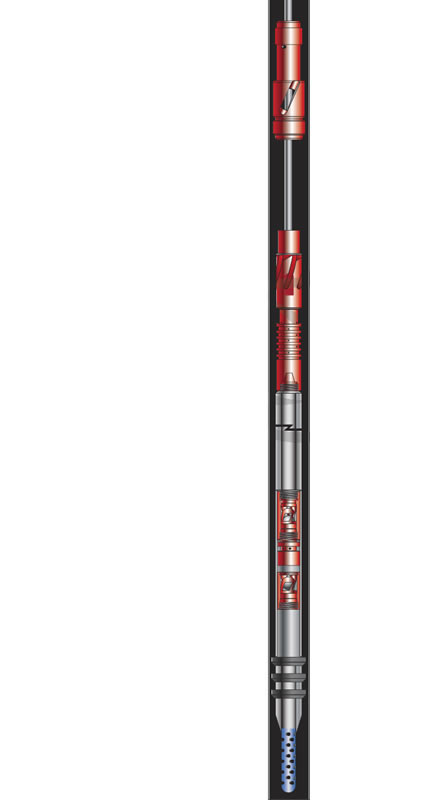

Top Check / Sand Check
click the "+" to learn more
Top Plunger Adapter
select the "+" to learn more
Top Plunger Adapter
- Ported Section
Dual 92 Plunger
select the "+" to learn more
High Flow Traveling Cage (female)
select the "+" to learn more
Cyclone Seat Plug
High Flow Standing Cage
click the plus sign to learn more
The Cyclone EVAC System
The Cyclone EVAC System represents a significant advancement in downhole pump technology. Sand, grit, iron sulfide, and other fines that typically accumulate within the pump assembly are redirected and allowed to pass through the system with the produced fluids. This prevents residual solids from collecting between the barrel and plunger, reducing interference, improving efficiency, and minimizing wear over time.
Eliminates Sand & Fines Build-Up
Prevents accumulation between the barrel and plunger, reducing interference and maintaining pump performance.
Improved Pump Efficiency
Supports smoother fluid movement through the assembly, allowing more consistent production.
Extended Equipment Life
Minimizes wear caused by abrasive particles, helping extend run life and reduce interventions.
Designed for Harsh Conditions
Performs reliably in environments with sand, grit, and iron sulfide present.
Technical Specifications
Component Specifications for the Cyclone System
Key dimensions and materials for core Cyclone System components, designed to support proper selection, installation, and performance in the field.
Cyclone Assembly
Ported Section - Length
Top Plunger
Adapter
HighFlow Traveling
Cage (Female) – Length
System Includes
Complete Cyclone System Assembly
Each Cyclone System is configured with the following components, designed to work together to improve flow, reduce solids buildup, and support long-term performance.
Visual Overview
See the Cyclone System in Action
Watch how the Cyclone System removes sand, grit, and fines from the pump assembly, improving flow, reducing wear, and supporting consistent production.
